Multilayer PCB
/
ENIG PCB
Name:

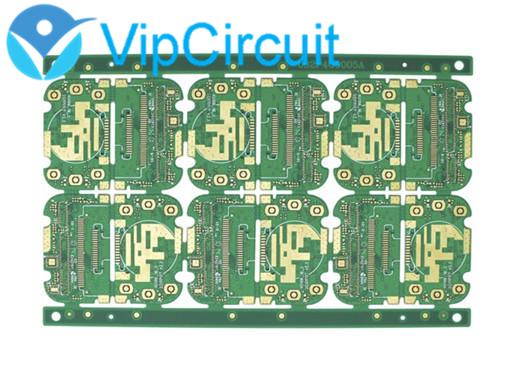

ENIG PCB
Surface finish:
Immersion Gold (ENIG)
Finished copper thickness:
1OZ
Material:
FR4
Layer:
2L
Finished board thickness:
1.6mm
Min. hole size:
0.5mm
Solder mask color:
Green
silkscreen color:
white
Product Description
Fast PCB,Small batch, Mass production
PCB specification
§ Layer: 1 to 30 layers
§ Material: FR-4, CEM-1, CEM-3, Hight TG, FR4 halogen free, FR-1, FR-2,Aluminum etc.
§ Max. finished thickness: 0.2 to 4.0mm (0.02 ~ 0.25″)
§ Max. finished board side: 500 x 500mm (20 x 20”)
§ Min. drilled hole size: 0.25mm (10mil)
§ Min. line width: 0.10mm (4mil)
§ Min. line spacing: 0.10mm (4mil)
§ Surface finish/treatment: HALS/HALS lead free, chemical tin, chemical gold, immersion gold, plating gold
§ Copper thickness: 0.5 to 3.0 oz
§ Solder mask color: green/black/white/red/blue
§ Inner packing: plastic bag
§ Outer packing: standard carton packing
§ Hole tolerance: PTH: ±0.076, NTPH: ±0.05
§ Certificate: UL, ISO 9001, ISO 14001, RoHS,UL
§ Profiling punching: routing, V-cut, beveling
§ Providing OEM service to all sorts of printed circuit board assembly
